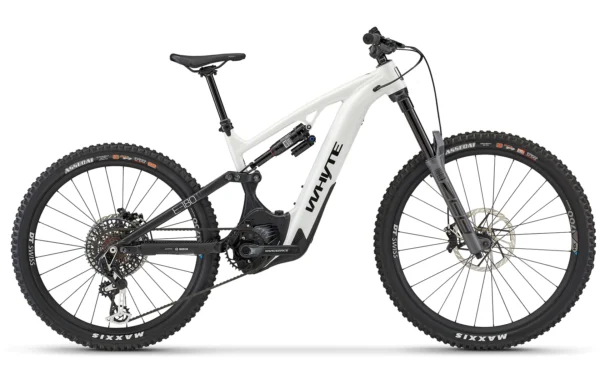

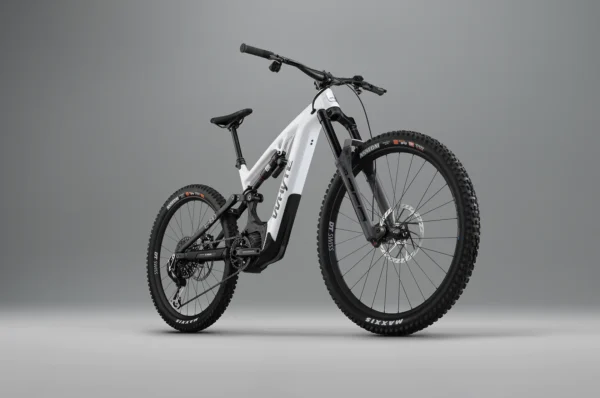

E-180 Works super e-enduro/gravity electric mountain bike


The ultimate e-enduro machine
Built around the first ever competition e-enduro engine – the Performance Line CX Race Limited Edition motor from Bosch – and dressed in a zero compromise, maximum performance build, our top-of-the-range E-180 Works is the ultimate super e-enduro race bike designed, developed and tested for – and by – the fastest riders on the fiercest courses.

– Optimised low centre of gravity gives you untouchable gravity handling.
– 180mm front + 170mm rear of trail-dominating suspension travel.
– Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.

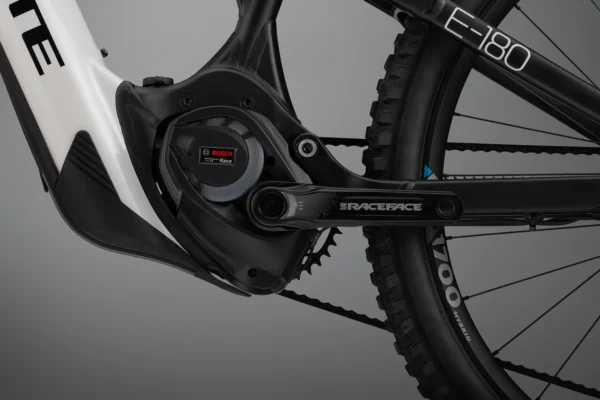

– Bosch Performance Line CX Race Limited Edition 85Nm motor (600W peak power) for game-changing race performance.
– 750Wh battery gives you the range to get more runs in between charges.
– MX wheels (29er front, 27.5in rear) so you can tackle everything full-gas – no matter how rowdy or steep.

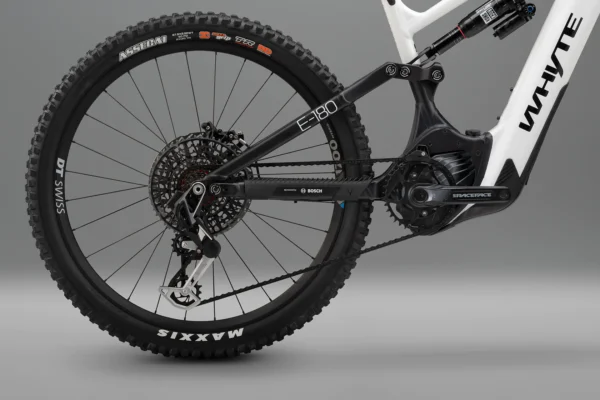

COLOUR Gloss pearlized white with matt black CASSETTE SRAM XS-1295 Eagle T-Type, 10-52T, 12 speed
FRAME 6061 alloy, hydroformed T6 aluminium, multi-butted, custom-drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts CHAIN SRAM X0 T-Type Eagle, 12-speed
FORK RockShox ZEB Ultimate 29in, 180mm travel, 44mm offset, DebonAir, Charger 2.1 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Stealth CRANKSET Race Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T chainring for Bosch Performance Line CX, black

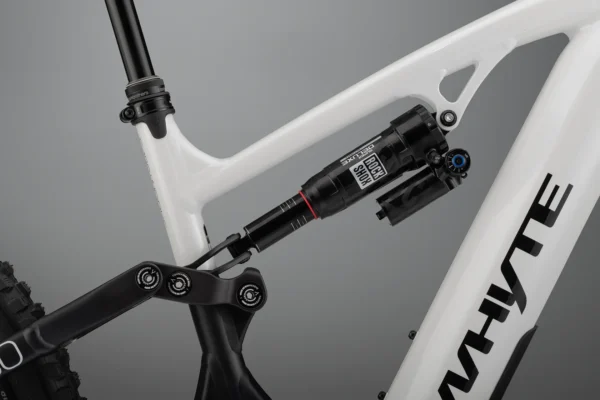

REAR SHOCK RockShox Super Deluxe Ultimate RCT, air, Fast Black coating, adjustable rebound, low-speed compression adjustment and tuneable DebonAir BOTTOM BRACKET N/A
HEADSET FSA No. 55R/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings SEATPOST Crank Brothers Highline 3, 30.9mm (sizes M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever
REAR HUB DT Swiss Hybrid HX1700, 12mm x 148mm Boost spacing, SRAM XD steel driver SADDLE Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
FRONT HUB DT Swis Hybrid HX1700, 30mm, 15mm x 110mm Boost spacing HANDLEBAR Race Face Turbine R, 35mm rise, 35mm bar bore, 800mm wide
SPOKES DT Swiss STEM Race Face Atlas, 35mm extension, 35mm bar bore
RIMS DT Swiss Hybrid HX1700, 30mm wide GRIPS Whyte Enduro lock-on
TYRE Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO + sidewall protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Assigai WT, TR, 27.5in x 2.5in 120TPI, Double Down casing, 3C Maxx Grip, Dual Compound, rear BRAKES FRONT SRAM Code RSC, four-piston hydraulic with sintered metal pads, 220mm diameter disc rotor
SHIFT LEVERS SRAM AXS Pod, two-button MMX, 12 speed BRAKES REAR SRAM Code RSC, four-piston hydraulic with sintered metal pads, 220mm diameter disc rotor
REAR MECH SRAM XX Eagle AXS T-Type, 12-speed PEDALS None
WEIGHT 26.1kg (size M)
